Zibo XiangRun Environment Engineering Co., Ltd.Products
Chloride Removal
WRITER：admin JOIN IN：2015-12-21
CLASSES：Alumina purification
Products Introduction:
XR104 activated alumina for chloride adsorbent is an adsorbent used to adsorb and remove chloride from Naphtha, natural gas, H2, N2, NH3, CO, CO2 & other feed gas in petrochemical.
Product Information:

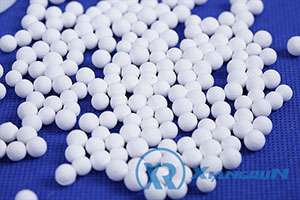

In petrochemical production process, chlorine in feed gas could cause poisoning of a variety of catalyst and adsorbent, the failure of adsorbent & catalyst performance, severely corrosivity of devices & equipment, so chlorine removal is necessary. Usually, we adopt solid antichlor to remove chloride in feed gas. XR-104 activated alumina balls for dechlorination is an high- efficient product to take off chlorine.
lVarious size available for the international condition.
1/8” (3.2mm), 3/16”(4.7mm)
Characteristics:
lUniform size
lEven and Uniform activity under high and low temperature
lGood water resistance and strong strength
lUneasy movable active components & chlorine after reaction
lWide application area
Working service:
Working temperature:5-400℃
Working pressure: ordinary pressure- 0.8MPA
Space velocity: 1000-3000h-1
Bed height-diameter ratio: ＞3
Dechlorination ratio: ≥99.9%
|
Item |
Unit |
Technical requirement |
|
Appearance |
White bead | |
|
Particle size |
mm |
3-5mm, 2-4mm |
|
AL2O3+promotor |
% |
≥93 |
|
Bulk density |
g/cm3 |
0.75-0.8 |
|
Surface area |
㎡/g |
≥130 |
|
Pore Volume |
ml/g |
≥0.4 |
|
Penetration of chlorine capacity(50℃) |
% |
≥12 |
|
Penetration of chlorine capacity(250℃) |
% |
≥22 |
|
Crushing Strength (N/Particle) |
N/particle |
≥85 |
Application:
XR-104 activated alumina chloride adsorbent for dechlorination is widely used for HCL removal(dehydrochlorinate) in syngas, catalyst & adsorbent protection, and dechlorination from Naphtha, natural gas, H2, N2, NH3, CO, CO2 & other feed gas.
Storage:
lAvoid moisture, avoid scrolling, throw and sharp shocking during transportation, rainproof facilities should be readied..
lIt should be stored in dry and ventilated warehouse to prevent contamination or moisture.
Package:
|
Type |
Plastic bag |
Drum |
Drum |
Super sack/Jumbo bag |
|
Bead |
25kg/55lb |
25 kg/ 55 lb |
150 kg/ 330 lb |
750kg/1650lb 900kg/1980lb 1000kg/ 2200 lb |
