Molecular sieve 13x / Zeolite 13x

WRITER：admin 　JOIN IN：2015-12-21

CLASSES：Adsorbents

Products Introduction:

XR404 Molecular sieve 13X, also called zeolite 13x is an adsorbent mainly used as catalyze carrier, co-adsorption of CO2, H2O and H2S as desiccant for medical and air compressor systems, and can also be adjusted to fit other various industrial applications.

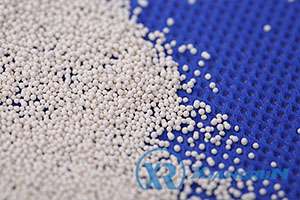

XR404 molecular sieve 13X is multipurpose, porous, high capacity alkali metal alumino-silicates in the spherical form. Zeolite 13X is the sodium form of the Type X crystal structure with pore diameters of approximately 10?. They can adsorb all molecules that can be adsorbed by 3A, 4A, and 5A molecular sieve. Molecular sieve 13X(zeolite 13x) can also adsorb molecules such as aromatics and branched-chain hydrocarbons, which have large critical diameters. has stable and excellent static and kinetic adsorption capacity and higher crush strength, our molecular sieve 13X (Zeolite 13x)has been well acceptable by domestic and abroad cryogenic air separation company.

At the same time, Xiangrun Chemical has develped specical improved molecular sieve for cryogenic air separtion process, which can increase adsorption time and decrease desorption temperature. Molecualr sieve 13X APG and XR416 ASU molecular sieve are good for air seperation unit.

Characteristics:

lstable and excellent static and kinetic adsorption capacity

lhigher crush strength

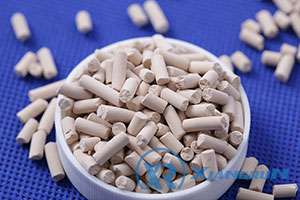

Property	Unit	Bead		Pellet		Note
Property	Unit	8x12	4x8	1/16"	1/8"	Note
Static Water Adsorption	%wt	≥26.00	≥26.00	≥26.00	≥26.00	RH50%, 25℃
Static CO₂ Adsorption	%wt	≥17.50	≥17.50	≥17.50	≥17.50	250mmHg, 25℃
Crush Strength	N	≥30.00	≥80.00	≥30.00	≥70.00	Avg. 25 bead
Crush Strength	lbs	≥7.00	≥18.00	≥7.00	≥16.00	Avg. 25 beads
Bulk Density	g/ml	≥0.62	≥0.62	≥0.62	≥0.62	Settle
Bulk Density	lbs/ft³	≥38.00	≥38.00	≥38.00	≥38.00	Settled
Loss on ignition	%wt	≤1.50	≤1.50	≤1.50	≤1.50	575℃, 1hr
Particle Ratio	%	≥97.00	≥99.00	~	~	~

Application of molecular sieve 13x(ZEOLITE 13x):

1. Removal of CO2 and moisture from air (air pre-purification) and other gases.

2. Separation of enriched oxygen from air.

3. Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams such as LPG, butane, propane etc.

4. Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).

5. Removal of n-chained compositions from aromatics.

Storage:

lAvoid moisture, avoid scrolling, throw and sharp shocking during transportation, rainproof facilities should be readied..

lIt should be stored in dry and ventilated warehouse to prevent contamination or moisture.

Packaging:

Type	Carton	Drum	Super sack
Bead	25 kg/ 55 lb	140 kg/ 308 lb	1000 kg/ 2200 lb
Pellet	25 kg/ 55 lb	130 kg/ 286 lb	1000 kg/ 2200 lb
