Products Introduction:
XR101 activated alumina desiccant is adsorbent used most widely to adsorb water in compressed air and produce high quality dry air.

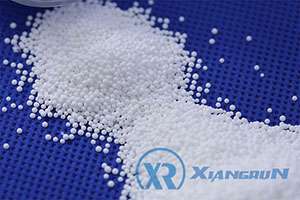

As a model of water adsorbents in China, XR101 activated alumina desiccant ball is used most widely in the country. It has a smooth surface and uniform size.
lVarious size available for the international condition.
7* 14 mesh(2.0mm), 1/8” (3.2mm), 3/16”(4.7mm), 1/4”(6.4mm).
Zibo Xiangrun could manufacture 1-20mm activated alumina. 10-20mm activated alumina is our super products.
Characteristics of Activated alumina adsorbent:
lHigh bulk density
lUniform size
lHigh mechanical strength and wear resistance
As a model produced by long development production technology, XR101 activated alumina ball is a water adsorbent for compressed air for exclusive use. Especially, it has excellent wear resistance, therefore it causes little dust in compressed air.
lHigh pore volume and high adsorption
With large surface area, XR101 activated alumina balls adsorb higher amount of water and fast desorption during regeneration. Its life is longer, and it has a remarkable capacity to regenerate.
|
Item |
Unit |
Technical requirement | |||
|
Particle size |
mm |
3-5 |
4-6 |
5-8 |
8-10 |
|
AL2O3 |
% |
≥93 |
≥93 |
≥93 |
≥93 |
|
SiO2 |
% |
≤0.10 |
≤0.10 |
≤0.10 |
≤0.10 |
|
Fe2O3 |
% |
≤0.04 |
≤0.04 |
≤0.04 |
≤0.04 |
|
Na2O |
% |
≤0.40 |
≤0.40 |
≤0.40 |
≤0.40 |
|
Attrition Loss |
% |
≤0.08 |
≤0.08 |
≤0.08 |
≤0.08 |
|
Bulk density |
g/ml |
≥0.75 |
≥0.75 |
≥0.75 |
≥0.75 |
|
Surface area |
㎡/g |
≥320 |
≥320 |
≥320 |
≥280 |
|
Pore Volume |
ml/g |
≥0.43 |
≥0.45 |
≥0.45 |
≥0.45 |
|
Water absorption |
% |
≥55 |
≥55 |
≥55 |
≥55 |
|
Crushing Strength (N/Particle) |
N/particle |
≥180 |
≥200 |
≥260 |
≥350 |
|
Type |
Plastic bag |
Drum |
Drum |
Super sack/Jumbo bag |
|
Bead |
25kg/55lb |
25 kg/ 55 lb |
150 kg/ 330 lb |
750kg/1650lb 900kg/1980lb 1000kg/ 2200 lb |
