Activated alumina for polyethylene purification
WRITER:admin  JOIN IN:2015-12-21
CLASSES:Adsorbents

Products Introduction:

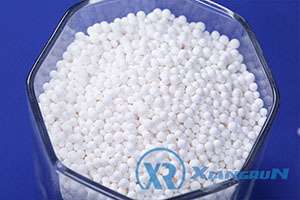

XR109 activated alumina for polyethylene  purification is as a filtration media in polyethylene production.   In this process, the slurry co-catalyst is filtered out of the polyethylene and trapped in the pores of the alumina bead.
Product Information:
Polyethylene (PE) is the most common plastic precursor and is used in a range of applications. Polyethylene is made from the building block of petroleum-based products, ethylene.  Ethylene is produced from cracking ethane or naphtha.  Often, an ethylene cracker is built on or near a refinery or PE derivative plants.  In general terms, ethylene, a co-monomer, and solvent are purified and reacted with a catalyst in a continuous stirred tank reactor (CSTR).  The slurry mixture exiting the reactor is then filtered to remove catalyst particles.  Next, solvent is separated from the product with solvent recovery and recycle following.  Purified polyethylene is extruded and then pelletized to a final product.Product created in a CSTR must be purified at the end of the process, removing the co-catalyst.  The catalyst removal step is done through adsorption beds of XR109 activated alumina balls.  This type of activated alumina is defined as HDPE purification.
lVarious size available for the international condition.
7* 14 mesh(1.2-2.8mm), 6*10mesh(1.5-3.2mm);5*8(2.5-4.0mm)
Characteristics of Activated alumina for polyethylene  purification:
lHigh bulk density
lUniform size
lHigh mechanical strength and wear resistance
lHigh pore volume and high adsorption

Item

Unit

Technical requirement

Appearance

White bead

Particle   size

mm

7*14mesh

AL2O3+promotor

%

≥93.5

Na2O

%

1.5-2.0

Bulk   density

g/cm3

0.7-0.8

Surface   area

/g

300-330

Pore   Volume

ml/g

0.45-0.5

Macroporosity

750A

0.13

Loss on ignition(300-1000)

%

4-7

Abrasion Loss

%

≤0.1

Static absorption RH%=20%

%

≥10

Static absorption RH%=60%

%

≥20

Static absorption RH%=95%

%

≥40

Crushing   Strength (N/Particle)

N/particle

50

Application of Activated alumina for polyethylene  purification:XR109 activated alumina ball is used in the production of polythene, can effectively adsorb catalyst residues, TBC, Hydrocarbons and other substances which affect products quality and stability.
Storage of Activated alumina for polyethylene  purification:
lAvoid moisture, avoid scrolling, throw and sharp shocking during transportation, rainproof facilities should be readied..
lIt should be stored in dry and ventilated warehouse to prevent contamination or moisture.
Package of Activated alumina for polyethylene  purification:

Type

Plastic bag

Drum

Drum

Super sack/Jumbo bag

Bead

25kg/55lb

25 kg/ 55 lb

150 kg/ 330 lb

750kg/1650lb

900kg/1980lb

1000kg/ 2200 lb
